31-METER Z-BOOM

  • CCP-31XZ4-120
Request Quote

SNAP SHOT​

Great for maneuvering in and out of tight job sites with the convenience of X-Style outriggers. 4 section Z fold.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

120 (m³/hour)

BOOM LENGTH​

31 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

4 (sections)

STANDARD FEATURES​

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Outrigger pads (4)
  • 4 meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 157 yd³/hr
  • 120 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 70″
  • 230 mm x 1800 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 Psi
  • 72 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1600 Psi
  • 114 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 28

S-TUBE

  • 8″ x 7″
  • 200 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO190

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2.5″
  • 65 mm

BOOM SPECIFICATIONS

4 SECTION Z-BOOM(VERTICAL REACH)

  • 99′ 4”
  • 30.3 m

MAXIMUM HORIZONTAL REACH

  • 86′ 3″
  • 26.3 m

REACH FROM FRONT OF TRUCK

  • 77′ 4″
  • 23.6 m

UNFOLDING HEIGHT

  • 21′
  • 6.5 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  • 90/180/255/245 (770 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 25′ 3″
  • 7.7 m

2ND SECTION

  • 19′ 7″
  • 6 m

3RD SECTION

  • 20′ 3″
  • 6.2 m

4TH SECTION

  • 20′ 7″
  • 6.3 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 19′ 5″
  • 5.9 m

REAR SPREAD

  • 12′ 10″
  • 3,9 m

MAXIMUM OUTRIGGER WEIGHT

  • 13,800 kg
  • 30,423 lbs

DIAGRAMS

The following diagrams are available for viewing

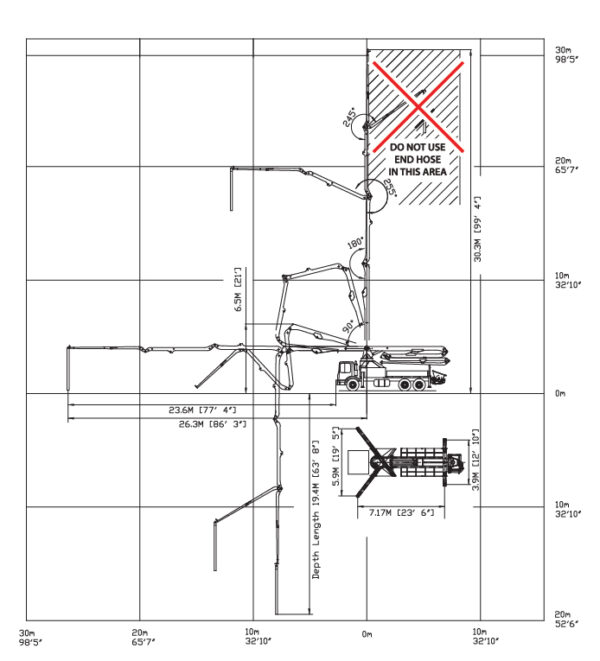

WORKING DIAGRAM

WIGHT DIAGRAM

DOWNLOAD
DOWNLOAD
