38-METER Z-R FOLD

  • CCP-38x25-170
Request Quote

SNAP SHOT​

The Concord 38 Meter Z-R Fold isn't just a smaller pump it's specialist.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

170 (m³/hour)

BOOM LENGTH​

38 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

STANDARD FEATURES​

  • 5″(125mm) pipe & albows
  • Wireless proportional remote control
  • LED boom light kit
  • LED working lamps on the side
  • Magnetic working lamp
  • Blow-out system cap (water & air)
  • Hopper vibrator
  • Automatic greasing system (hopper only) Lincoln
  • End hose length 13′ (4m)
  • Transition door with slurry port
  • Company name & phone number decals
  • One Safety sling
  • Tool box with basic repair items/testing gauge
  • Spare sensing valves
  • Spare pumping relay/fuses
  • One clamp (125mm)
  • Outrigger pads 4 pieces
  • Grudfos type water pump
  • 1 water hose plus nozzle 2 Clean up sponges
  • Clean-up scraper
  • Tow manual books
  • Quick couplings for filter

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 224 yd³/hr
  • 170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9” x 83”
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 Psi
  • 72 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1600 Psi
  • 114 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9” x 7”
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO260

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2”
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM (VERTICAL REACH)

  • 213’
  • 37.5 m

MAXIMUM HORIZONTAL REACH

  • 120’
  • 33.6 m

REACH FROM FRONT OF TRUCK

  • 101’
  • 30.8 m

UNFOLDING HEIGHT

  • 23’4”
  • 7.1 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  • 91/180/240/180/240 (931 total)

DELIVERY LINE

  • 5”
  • 125 mm

1ST SECTION

  • 25’7”
  • 7.8 m

2ND SECTION

  • 21’9”
  • 6.6 m

3RD SECTION

  • 21’8”
  • 6.6 m

4TH SECTION

  • 21’
  • 6.4 m

5TH SECTION

  • 20’3”
  • 6.2 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 20′ 8″
  • 6.3 m

REAR SPREAD

  • 24′ 6″
  • 7.5 m

MAXIMUM OUTRIGGER WEIGHT

  • 21,800 kg
  • 48,060 lbs

DIAGRAMS

The following diagrams are available for viewing

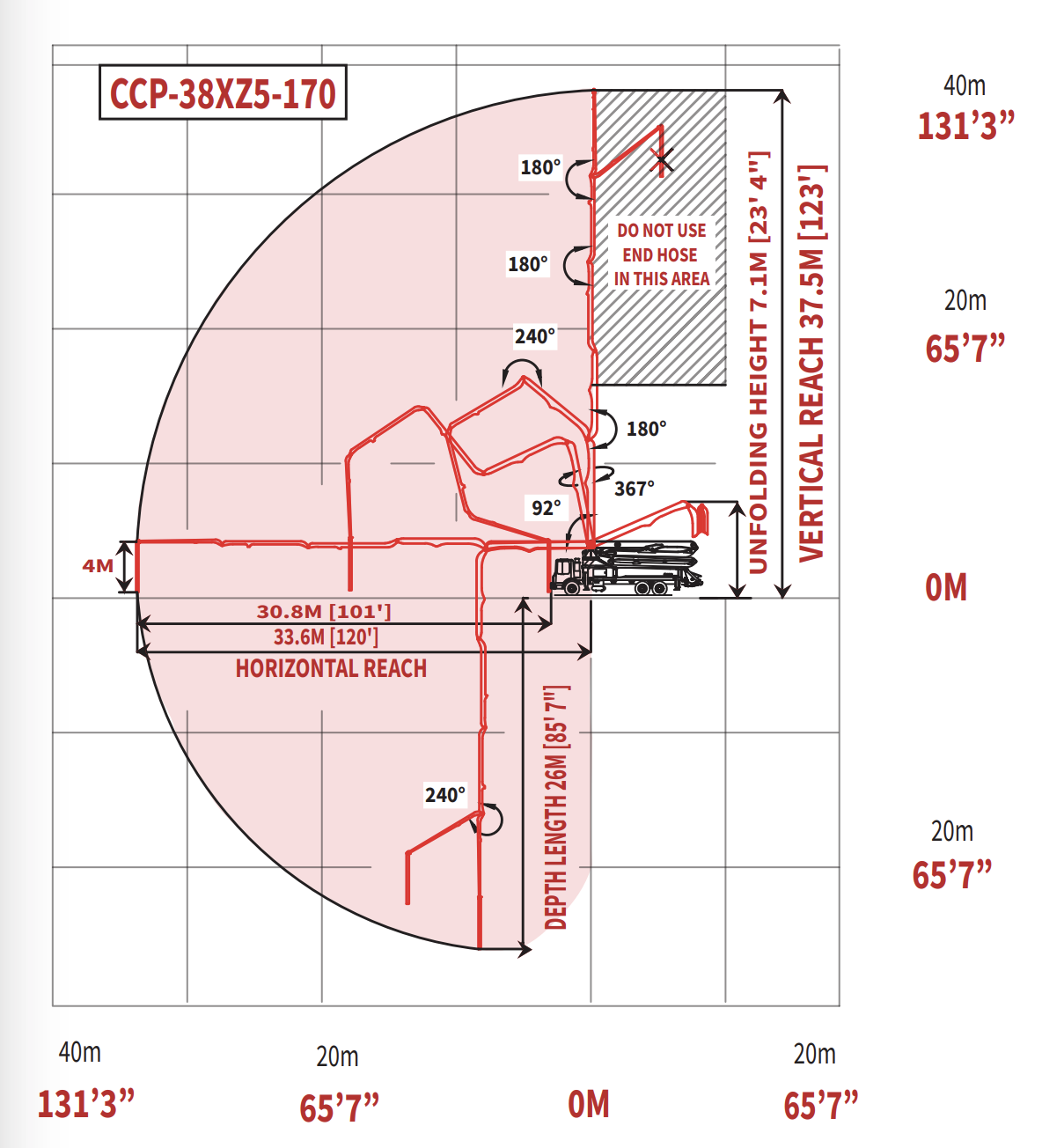

WORKING DIAGRAM

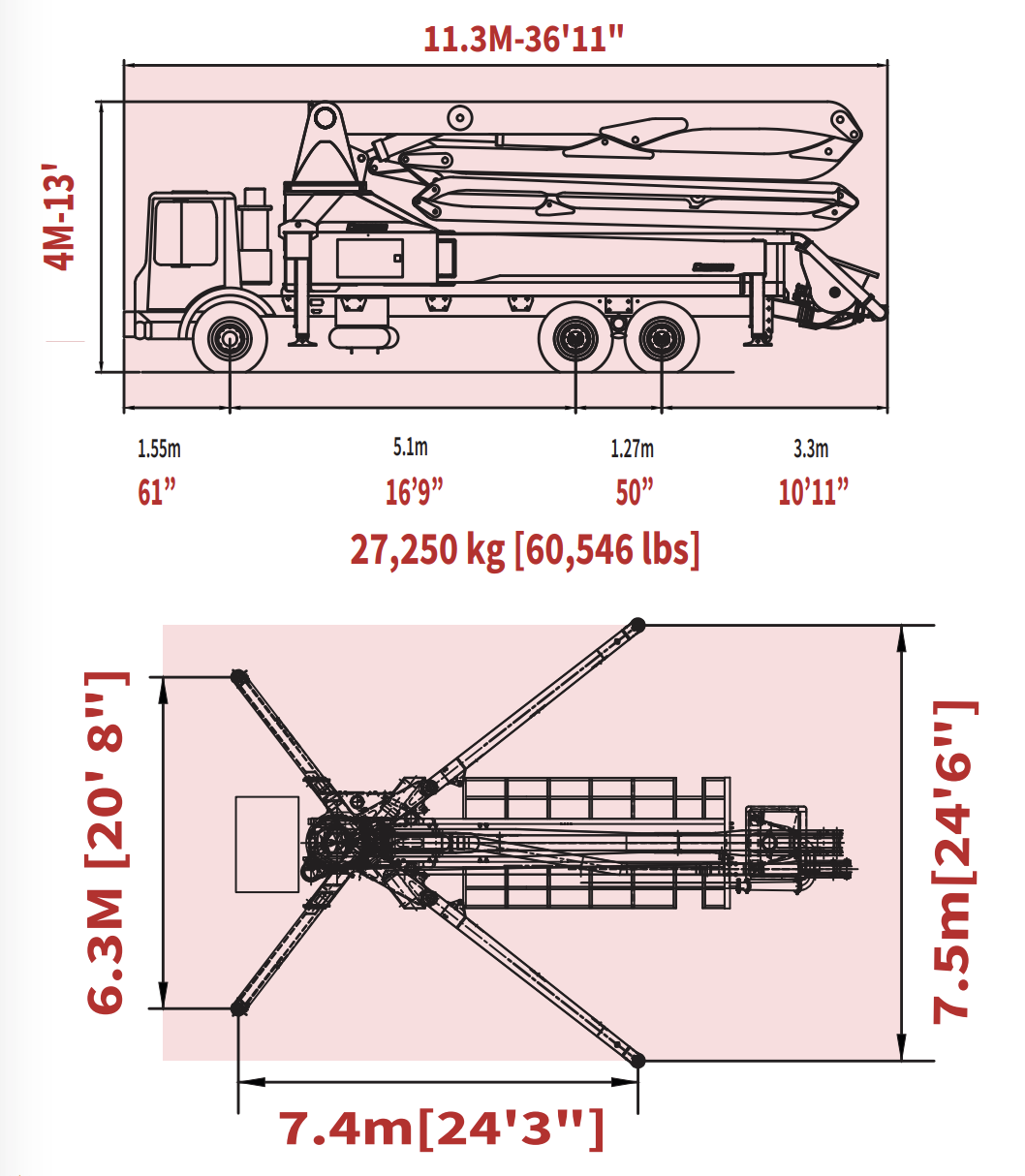

WIGHT DIAGRAM
