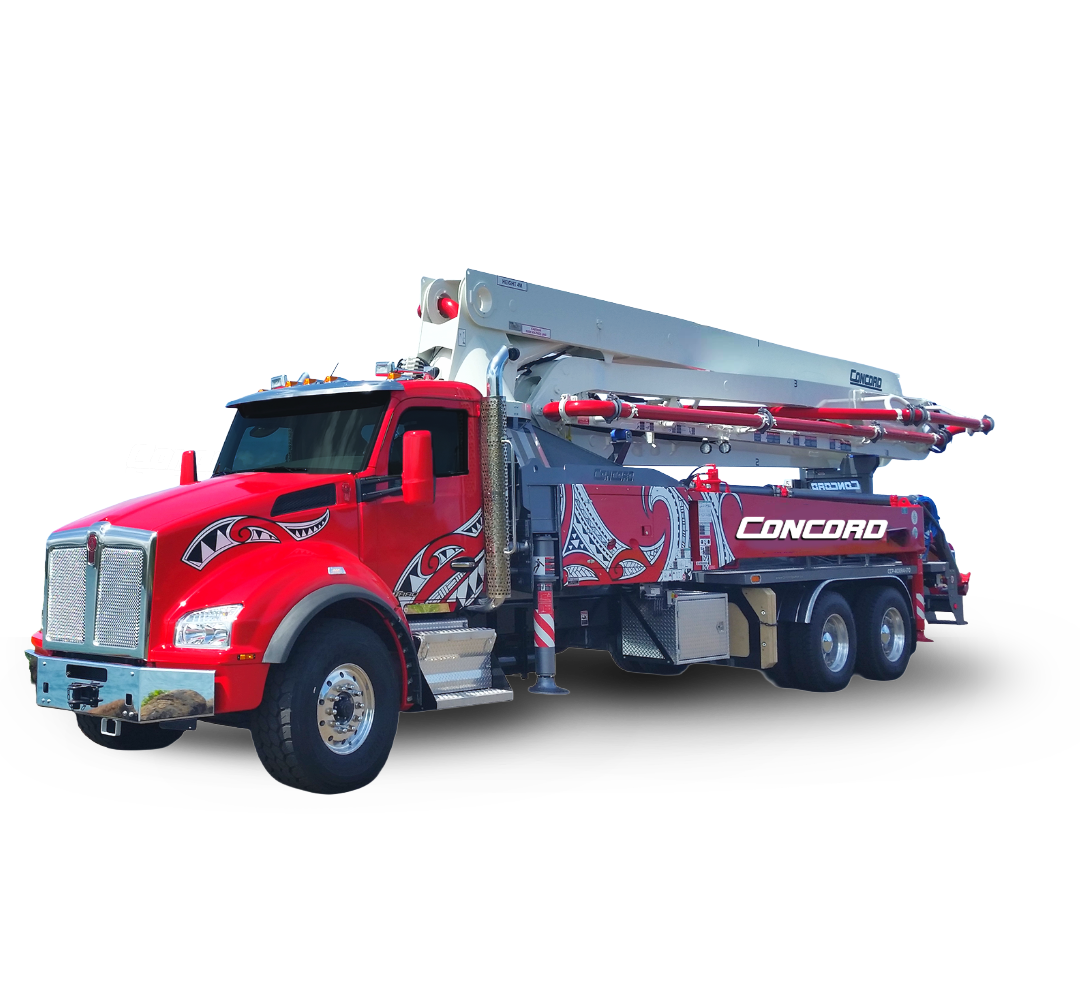

40-METER ROLL FOLD

CCP-40XR4-170

SNAP SHOT

Great for maneuvering in and out of tight job sites with the convenience of X-Style outriggers. 4 section R fold.

PIPE SYSTEM

Single Wall System

MAX OUTPUT

170 (m³/hour)

BOOM LENGTH

40 (meters)

DELIVERY LINE

5" (Diameter)

BOOM SECTIONS

4 (sections)

STANDARD FEATURES

Heat treated single wall pipe and elbows
HBC or Autec wireless remote
Boom light kit
Side panel working lights
Outrigger pads (4)
4 meters (13ft) end hose
Magnetic working light
System blow out cap (water)
Hopper vibrator
Automatic greasing system (hopper only)
Safety sling

Tool box w/basic repair items and testing gauge
Spare hydraulic hose kit
Spare sensing valves
Spare pumping relays and fuses
2 clamps (125mm/ 5”)
Grundfos water pump
2 clean out sponges
Clean up scraper
25ft water hose with nozzle
2 user/parts manuals

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

224 yd³/hr
170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

9″ x 83″
230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

1043 Psi
72 Bar

CONCRETE PRESSURE (HEAD SIDE)

1600 Psi
114 Bar

HOPPER CAPACITY

21 ft³
600 litres

STROKES/MINUTE

S-TUBE

9″ x 7″
230 mm x 180 mm

HYDRAULIC PUMP

Rexroth A11VLO260

CYCLING SYSTEM

All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

2.5″
65 mm

BOOM SPECIFICATIONS

4 SECTION ROLL & FOLD (VERTICAL REACH)

131′ 2″
40 m

MAXIMUM HORIZONTAL REACH

118′ 4″
36.1 m

REACH FROM FRONT OF TRUCK

109′
32.2 m

UNFOLDING HEIGHT

30′ 2″
9.2 m

ROTATION

370 degrees

SECTION ARTICULATION

92/180/240/245 (757 total)

DELIVERY LINE

5″
125 mm

1ST SECTION

31′ 2″
9.5 m

2ND SECTION

28′ 3″
8.6 m

3RD SECTION

28′ 7″
8.7 m

4TH SECTION

31′ 2″
9.5 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

FRONT SPREAD

20′ 8″
6.3 m

REAR SPREAD

26′ 2″
8 m

MAXIMUM OUTRIGGER WEIGHT

23,000 kg
50,706 lbs

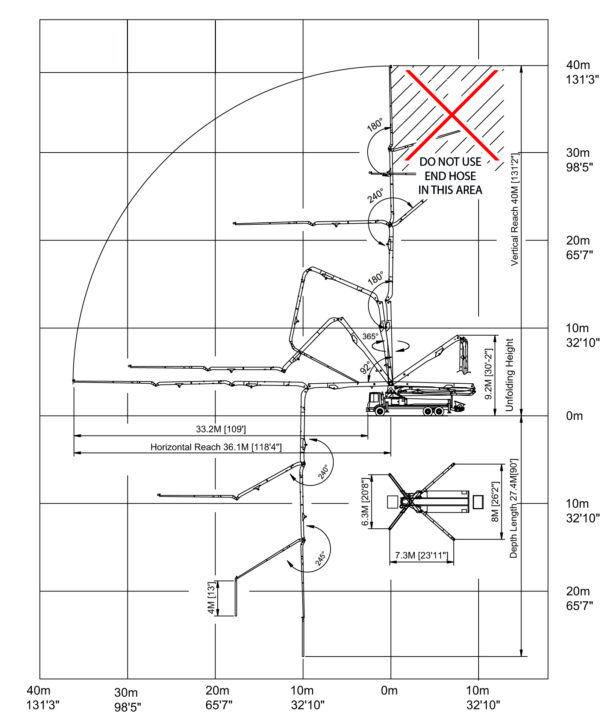

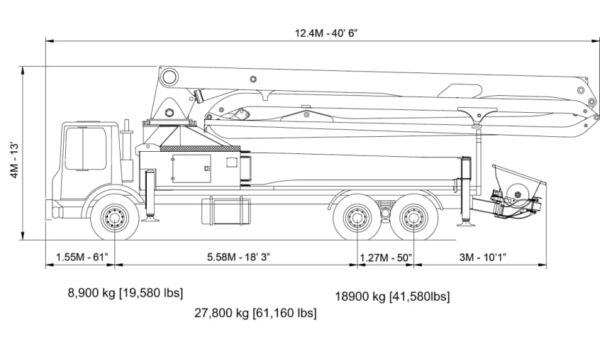

DIAGRAMS

The following diagrams are available for viewing
