40 METER Z-R FOLD

  • CCP-40X25-180
Request Quote

SNAP SHOT​

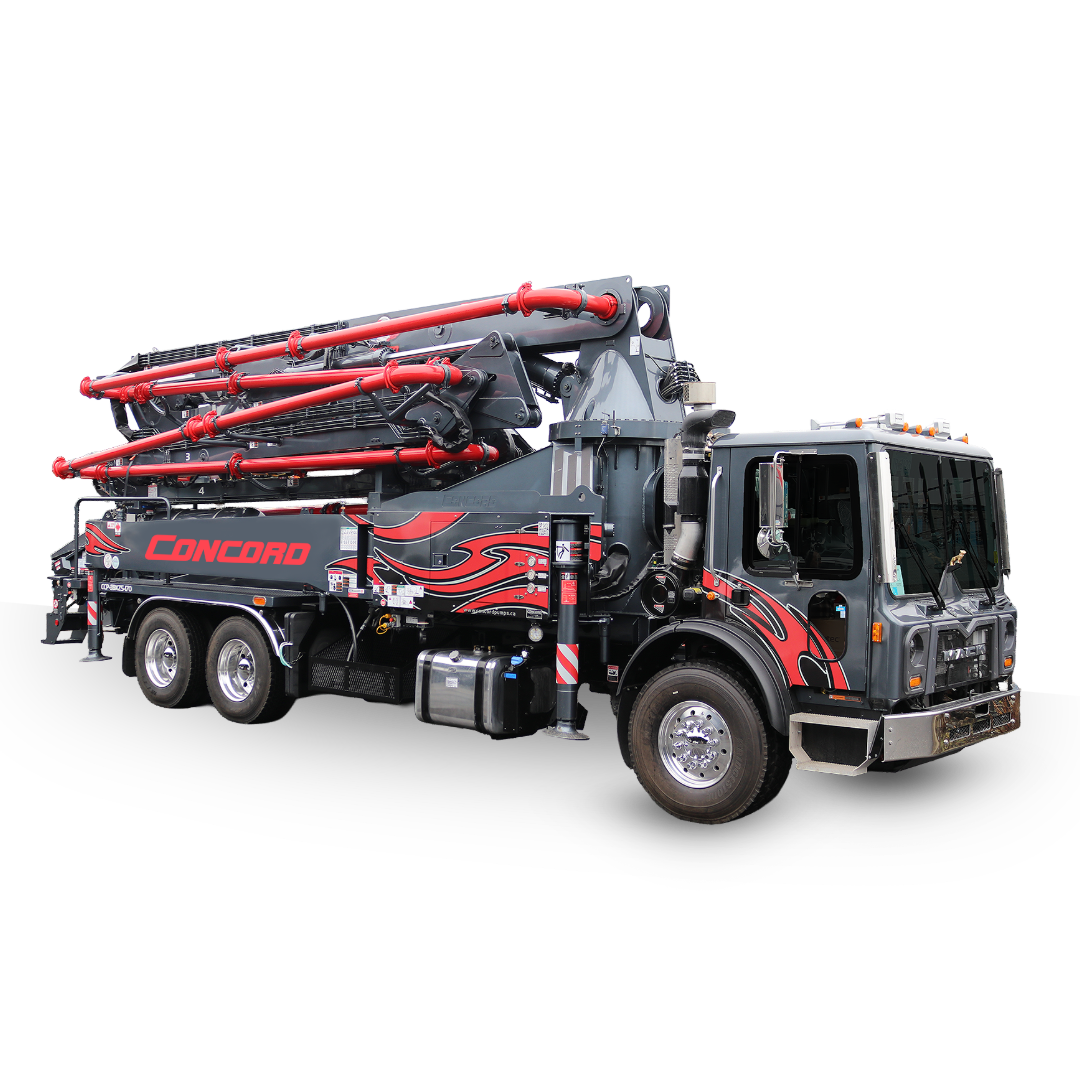

This rugged, 40-meter truck-mounted pump is built for serious performance and unmatched versatility

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

170 (m³/hour)

BOOM LENGTH​

40 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

STANDARD FEATURES​

  • 5″ (125mm) pipe & albows
  • Wireless proportional remote control
  • LED boom light kit
  • LED working lamps on the side
  • Magnetic working lamp
  • Blow-out system cap (water & air)
  • Hopper vibrator
  • Automatic greasing system (hopper only) Lincoln
  • End hose length 13′ (4m)
  • Transition door with slurry port
  • Company name & phone number decals
  • One safety sling
  • Tool box with basic repair items/testing gauge
  • Spare sensing valves
  • Spare pumping relay/fuses
  • One clamp (125mm)
  • Outrigger pads 4 pieces
  • Grunfos type water pump
  • 1 water hose plus nozzle 2 Clean up sponges
  • Clean-up scraper
  • Two manual books
  • Quick couplings for filters

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 224 yd³/hr
  • 170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 Psi
  • 72 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1600 Psi
  • 114 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO260

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

BOOM SPECIFICATIONS

SECTION Z-BOOM (VERTICAL REACH)

  • 129′10″
  • 39.6 m

MAXIMUM HORIZONTAL REACH

  • 117′ 3″
  • 35.7 m

REACH FROM FRONT OF TRUCK

  • 107′ 9″
  • 32.8 m

UNFOLDING HEIGHT

  • 26′
  • 7.9 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  •  92/180/240/180 (692 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 29′ 5″
  • 9 m

2ND SECTION

  • 22′ 3″
  • 6.8 m

3RD SECTION

  • 22′ 3″
  • 6.8 m

4TH SECTION

  • 21′ 6″
  • 6.6 m

5TH SECTION

  • 20′ 9″
  • 6.4 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 20′ 8″
  • 6.3 m

REAR SPREAD

  • 26′ 2″
  • 8 m

MAXIMUM OUTRIGGER WEIGHT

  • 23,000 kg
  • 50,706 lbs

DIAGRAMS

The following diagrams are available for viewing

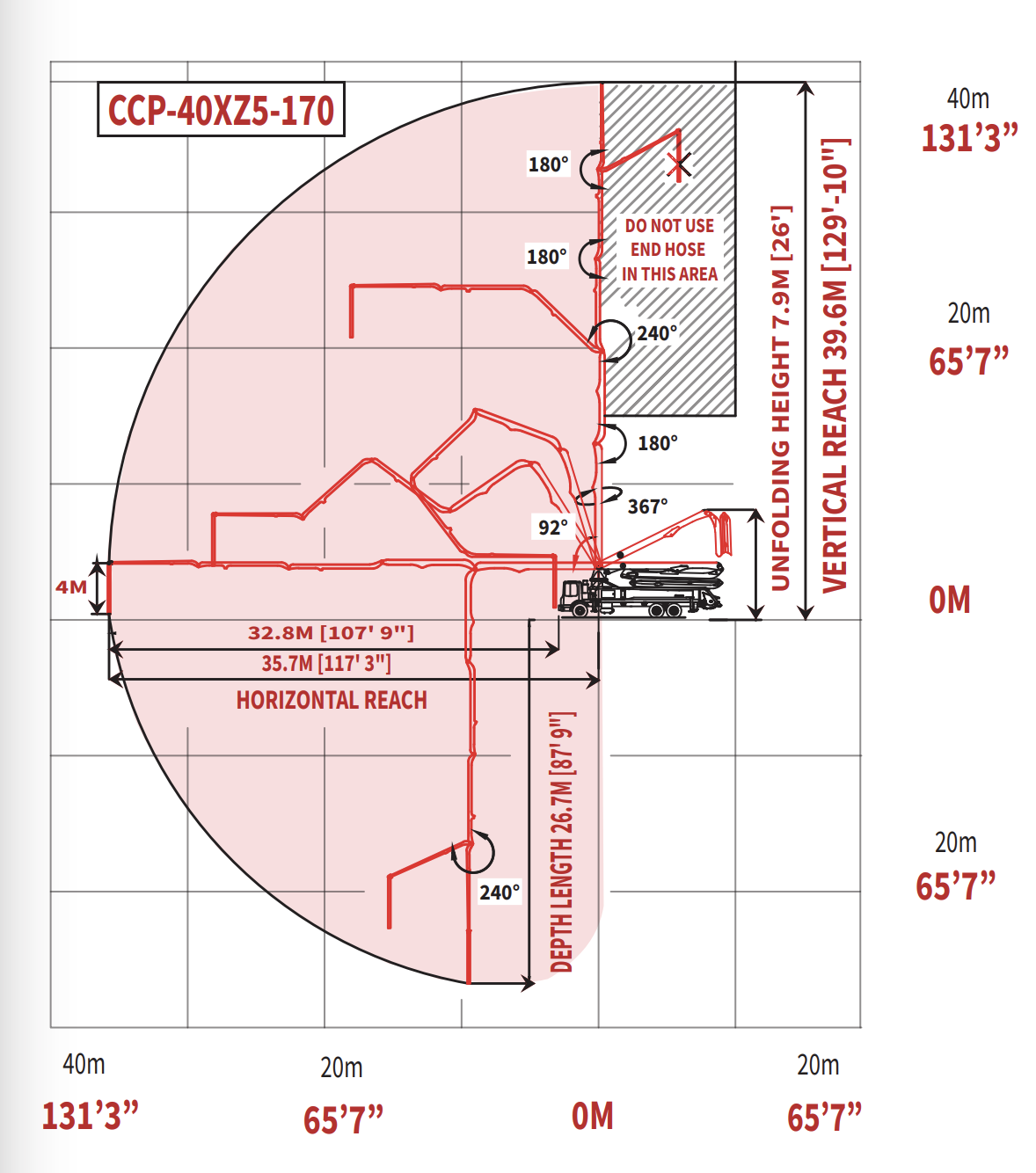

WORKING DIAGRAM

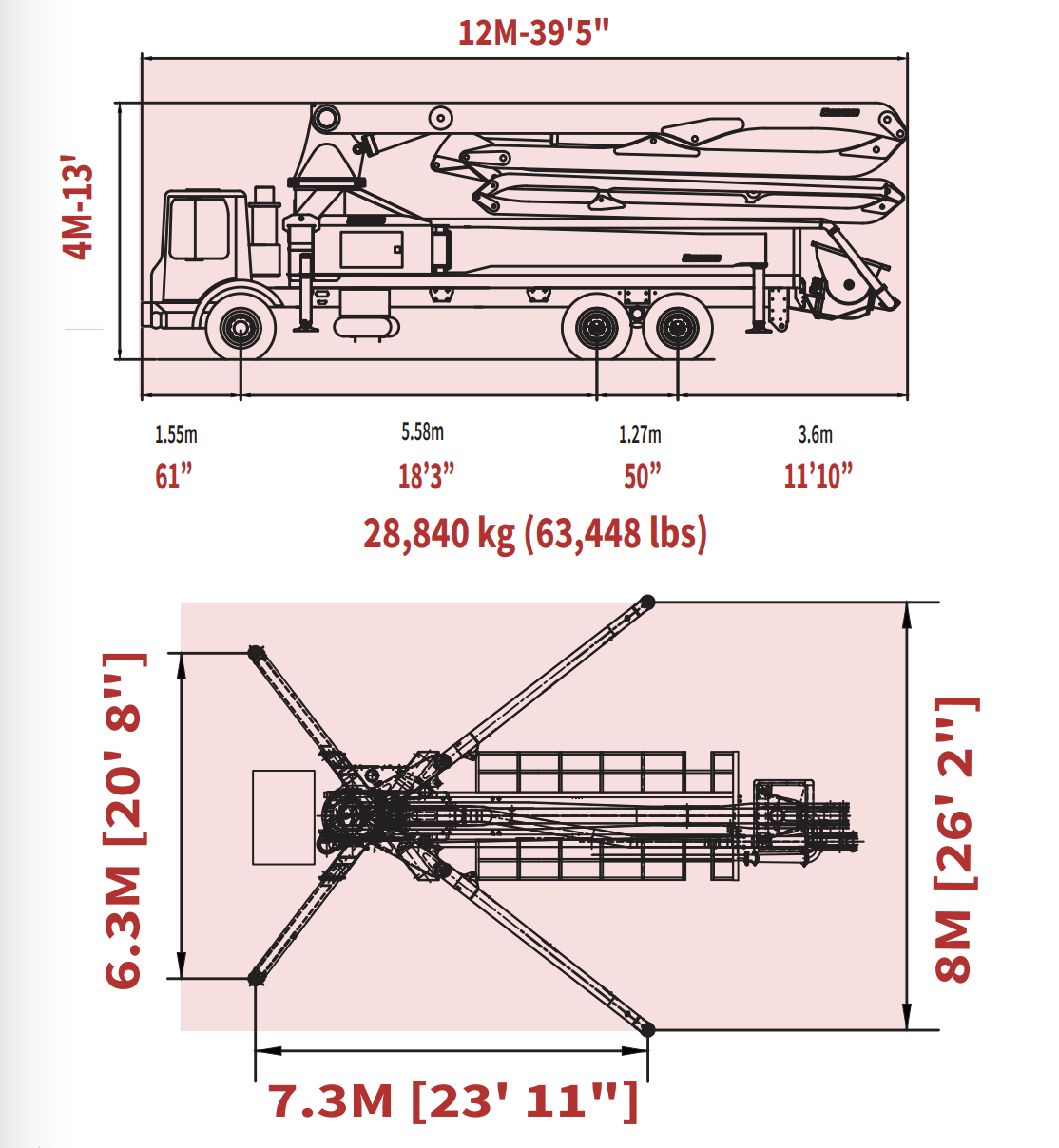

WIGHT DIAGRAM

DOWNLOAD
DOWNLOAD
