The Concord 65-Meter 5-Section Z-R Fold is a heavy-duty, high-reach concrete boom pump truck designed for large-scale commercial and infrastructure projects. Mounted on a heavy-duty truck platform and featuring a versatile 5-section Z-R Fold boom, it offers exceptional reach and flexible boom movement—ideal for complex or high-volume pours.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

180 (m³/hour)

BOOM LENGTH​

65 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

STANDARD FEATURES​

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Aluminum Outrigger pads (4)
  • 4 meter (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 237 yd³/hr
  • 180 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1269 Psi
  • 87.5 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1885 Psi
  • 130 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A20VLO190 Double Main Pump

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2.5″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM (VERTICAL REACH)

  • 213′
  • 65 m

MAXIMUM HORIZONTAL REACH

  • 199′
  • 60.6 m

REACH FROM FRONT OF TRUCK

  • 189′
  • 57.6 m

UNFOLDING HEIGHT

  • 44′
  • 13.5 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  • 92/180/230/180/235 (917 total)

DELIVERY LINE

  • 5”
  • 125 mm

1ST SECTION

  • 40’
  • 12.2 m

2ND SECTION

  • 33’ 9”
  • 10.3 m

3RD SECTION

  • 37’
  • 11.3 m

4TH SECTION

  • 43’ 7″
  • 13.3 m

5TH SECTION

  • 43’ 3″
  • 13.2 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 44′ 10″
  • 13.7 m

REAR SPREAD

  • 47′ 6″
  • 14.5 m

MAXIMUM OUTRIGGER WEIGHT

  • 54,000 kg
  • 119,049 lbs

DIAGRAMS

The following diagrams are available for viewing

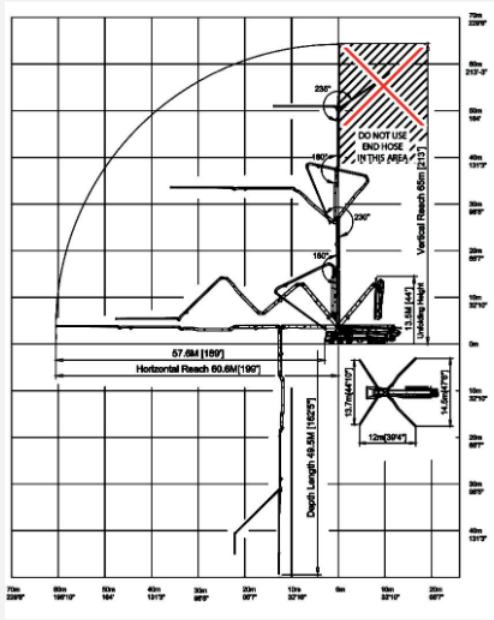

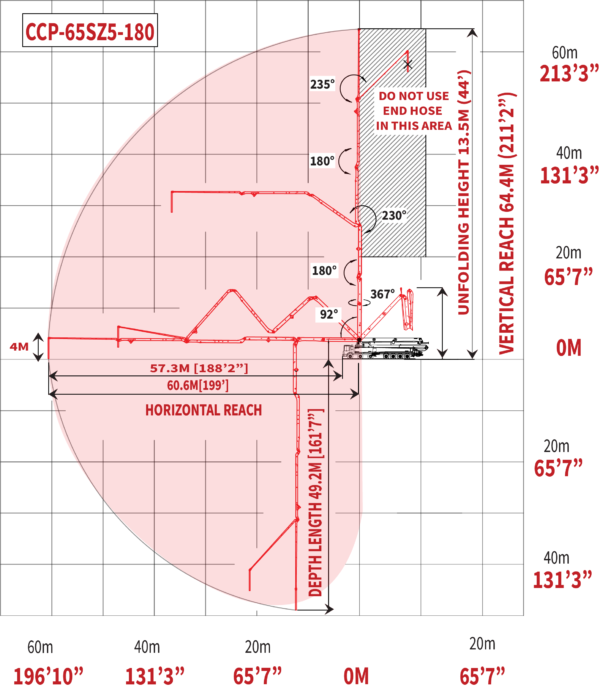

WORKING DIAGRAM

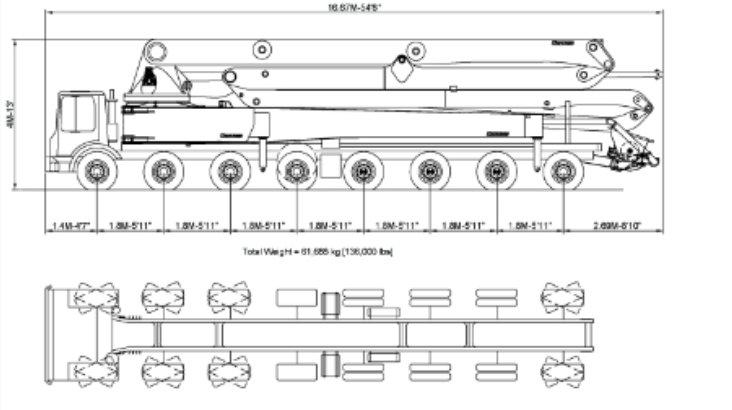

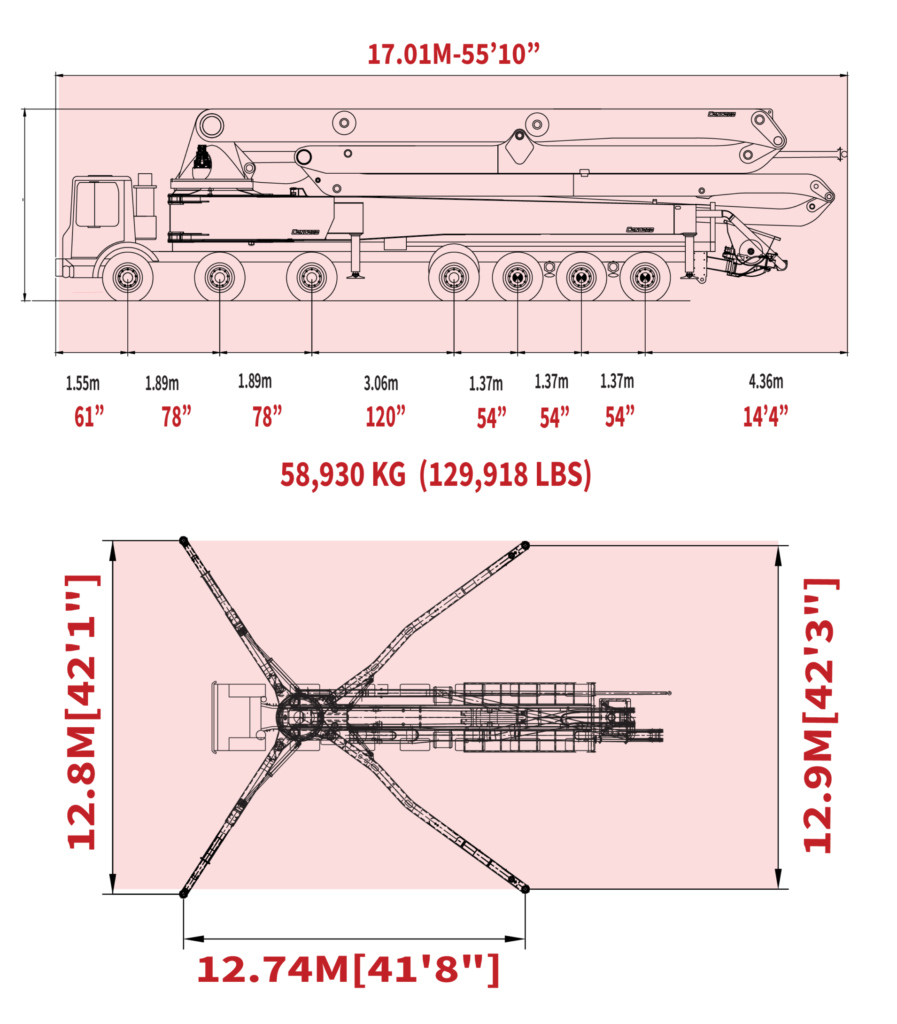

DIMENSIONS DIAGRAM
