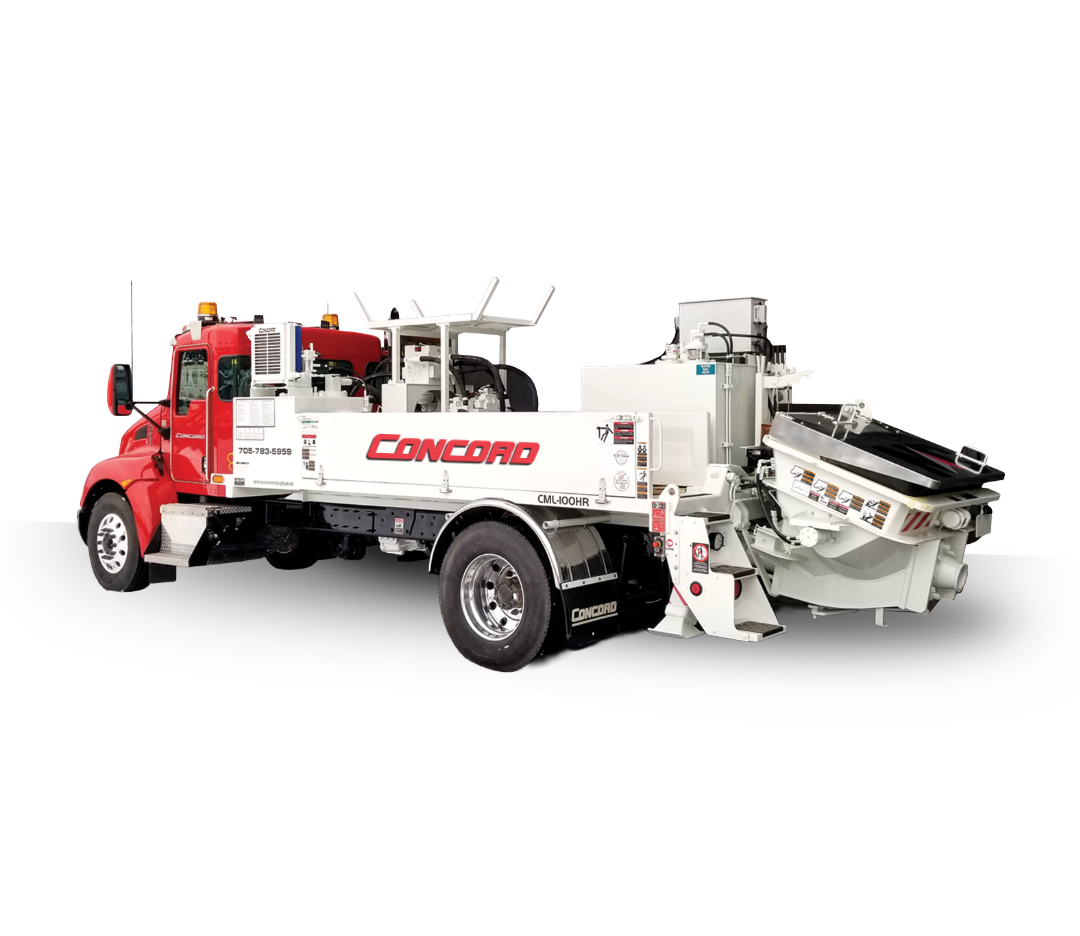

CML-100 HR TRUCK MOUNTED

CCP-CML-100 HR

SNAP SHOT

Performs great on both large commercial pours and the smallest residential jobs.

MAX OUTPUT

100 (m³/hour)

CONCRETE PRESSURE

1334 (pounds per square inch)

VERTICAL MAX

110 (meters)

STANDARD FEATURES

Wireless proportional remote control
Magnetic working light
Blow-out system cap (water & air)
Hopper vibrator
Automatic greasing system (hopper only) – Lincoln^®
Tool box with basic repair items and testing gauge
Company name & phone number decals
Quick couplings for filter system
Spare hydraulic hose kit

Spare sensing valves
Spare pumping relays and fuses
One clamps (125mm)
Outrigger pads (2 pieces)
Grundfos type water pump
One water hose plus nozzle
Two clean out sponges
Clean-up scraper
Two user/parts manual books

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

139 yd³/hr
100 m³/hr

DELIVERY CYLINDER

8″ x 70″
200 mm x 1800 mm

STROKES PER MINUTE

CONCRETE PRESSURE (ROD SIDE)

1334 Psi
92 Bar

CONCRETE PRESSURE (HEAD SIDE)

2132 Psi
147 Bar

HOPPER CAPACITY

21 ft³
600 litres

S-TUBE

8″ x 7″
200 mm x 180 mm

HYDRAULIC PUMP

Rexroth A11VLO190

CYCLING SYSTEM

All hydraulic sensing with manual overrides. Manual high and low pressure use.

MAXIMUM AGGREGATE SIZE

2.5″
65 mm

VERTICAL MAX (HEAD SIDE)

360′
110 m

HORIZONTAL MAX (HEAD SIDE)

967′
295 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

REAR SPREAD

7′ 10″
2.4 m

DIAGRAMS

The following diagrams are available for viewing
