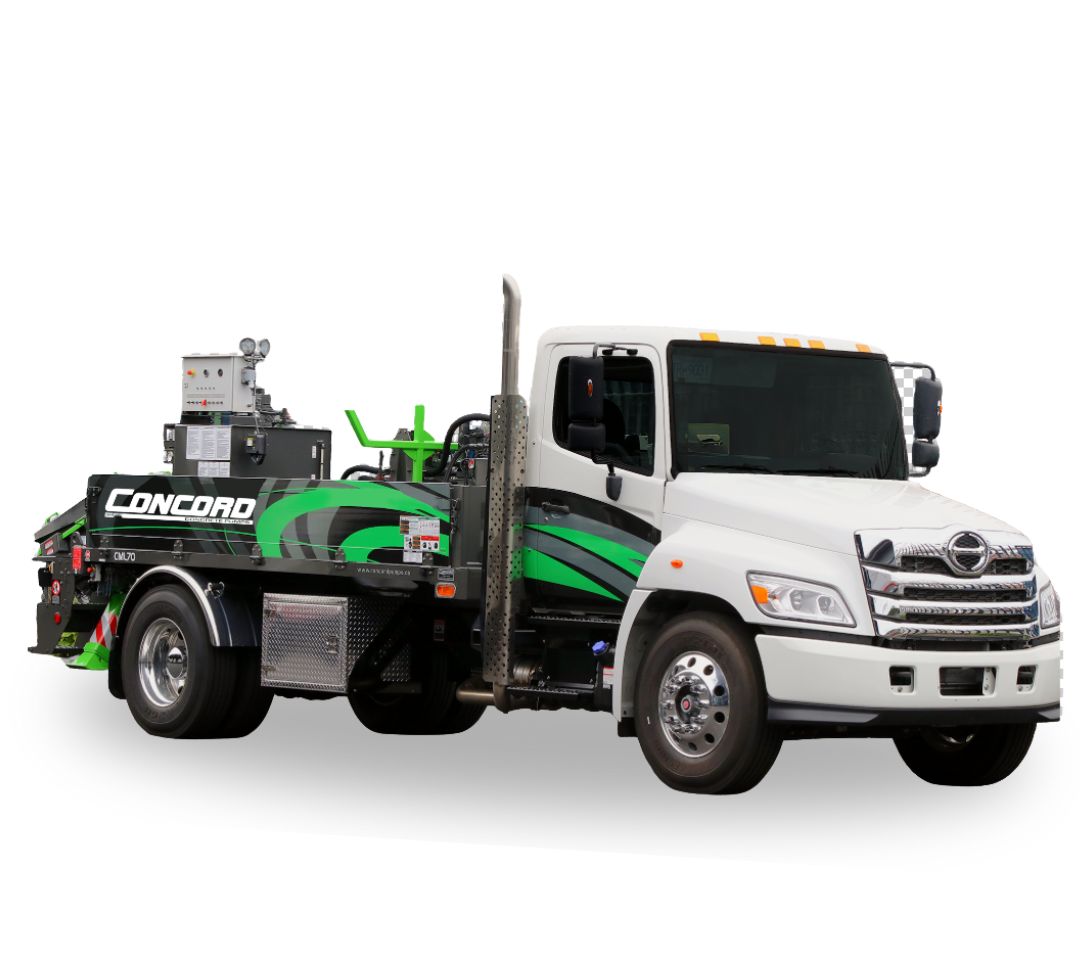

CML-70 TRUCK MOUNTED

CCP-CML-70

SNAP SHOT

Performs great on both large commercial pours and the smallest residential jobs.

MAX OUTPUT

70 (m³/hour)

CONCRETE PRESSURE

1131 (pounds per square inch)

VERTICAL MAX

100 (meters)

STANDARD FEATURES

Wireless proportional remote control
Magnetic working light
Blow-out system cap (water & air)
Hopper vibrator
Automatic greasing system (hopper only)
Tool box with basic repair items and testing gauge
One safety sling
Spare hydraulic hose kit

Spare sensing valves
Spare pumping relays and fuses
One clamps (125mm)
Outrigger pads (2 pieces)
Grundfos type water pump
Two clean out sponges
Clean-up scraper
Two user/parts manual books

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

96 yd³/hr
70 m³/hr

DELIVERY CYLINDER

7″ x 55″
180 mm x 1400 mm

STROKES PER MINUTE

CONCRETE PRESSURE

1131 Psi
78 Bar

HOPPER CAPACITY

10.5 ft³
300 litres

S-TUBE

7″ x 5″
180 mm x 125 mm

HYDRAULIC PUMP

Rexroth A11VLO145

CYCLING SYSTEM

All hydraulic sensing with manual overrides. Manual high and low pressure use.

MAXIMUM AGGREGATE SIZE

1.5″
38 mm

VERTICAL MAX (ROD SIDE)

328′
100 m

HORIZONTAL MAX (ROD SIDE)

984′
300 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

REAR SPREAD

7′ 10″
2.4 m

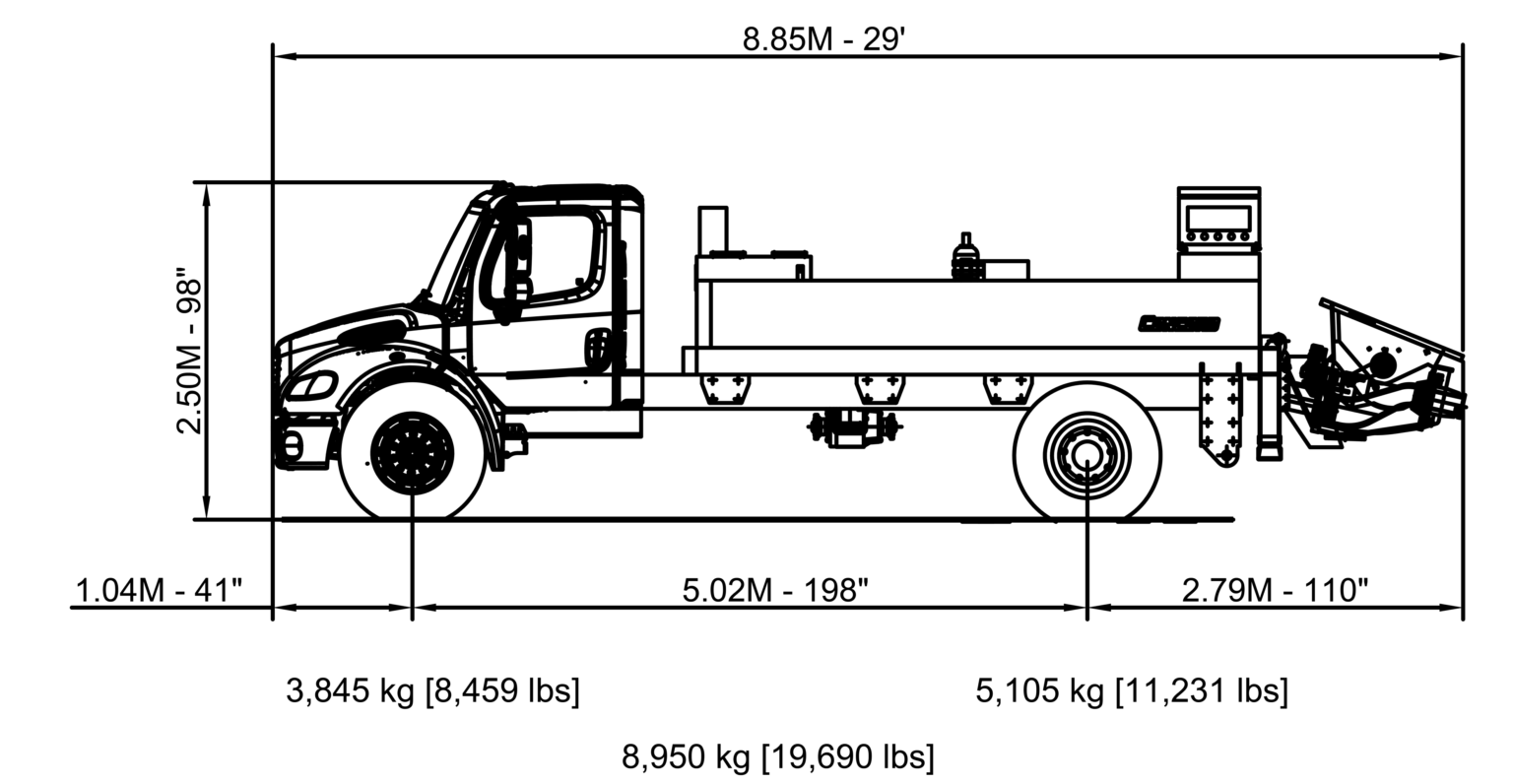

DIAGRAMS

The following diagrams are available for viewing
