51-METER Z-R FOLD

Request Quote

CONCRETE PUMPS

SNAP SHOT​

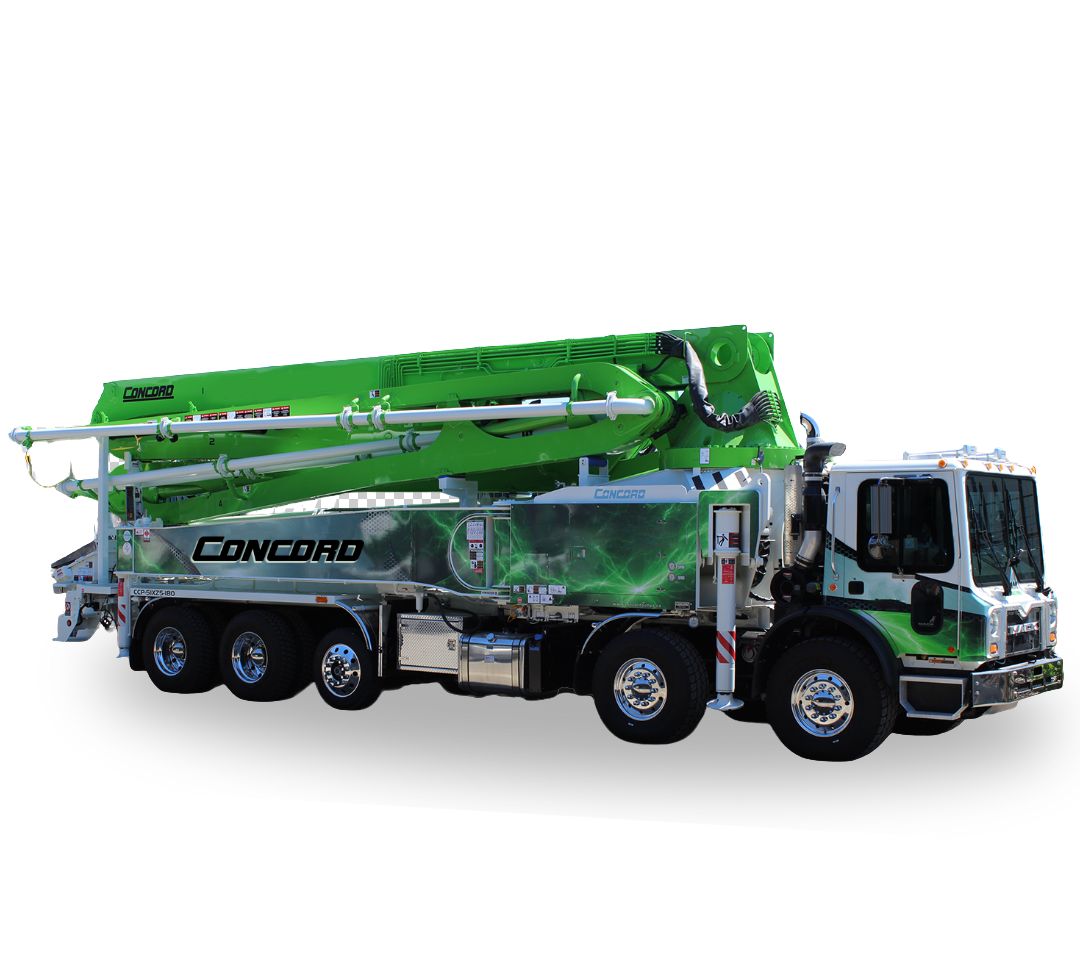

The most compact 51 meter in the market.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

180 (m³/hour)

BOOM LENGTH​

51 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

INCLUDES

STANDARD FEATURES

  • 5″ (125mm) pipe and elbows
  • Wireless proportional remote control
  • LED boom light kit
  • LED working lamps on the side
  • Magnetic working lamp
  • Blow-out system cap (water and air)
  • Hopper vibrator
  • Automatic greasing system (hopper only) – Lincoln&#174
  • 4 Meters (13ft) end hose
  • Transition door with slurry port
  • Decals of company name and phone number
  • One safety sling

  • Tool box with basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • One clamp (125mm / 5”)
  • Outrigger pads 4 pieces
  • Grundfos type water pump
  • One water hose plus nozzle
  • 2 Clean out sponges
  • Clean up scraper
  • 2 User/parts manuals
  • Quick couplings for filter system

THE FOLLOWING ARE SPECIFICATIONS FOR PUMP, BOOM AND OUTRIGGER.

SPECIFICATIONS

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 237 yd³/hr
  • 180 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1269 Psi
  • 87.5 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1885 Psi
  • 130 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A20VLO190 Double Main Pump

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM (VERTICAL REACH)

  • 164′
  • 50 m

MAXIMUM HORIZONTAL REACH

  • 149′ 2″
  • 45.4 m

REACH FROM FRONT OF TRUCK

  • 140′
  • 42.6 m

UNFOLDING HEIGHT

  • 30′ 4″‘
  • 9.2 m

ROTATION

  • 367 degrees

SECTION ARTICULATION

  • 92/180/240/180/245 (937 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 31’4″
  • 9.55 m

2ND SECTION

  • 26′ 25″
  • 8 m

3RD SECTION

  • 27′ 89″
  • 8.5 m

4TH SECTION

  • 31′ 4″
  • 9.55 m

5TH SECTION

  • 32′ 8″
  • 10 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • Yes

FRONT SPREAD

  • 29′ 5″
  • 9 m

REAR SPREAD

  • 34′
  • 10.4 m

MAXIMUM OUTRIGGER WEIGHT

  • 35,000 kg
  • 77,161 lbs

THE FOLLOWING DIAGRAMS ARE AVAILABLE FOR VIEWING

DIAGRAMS

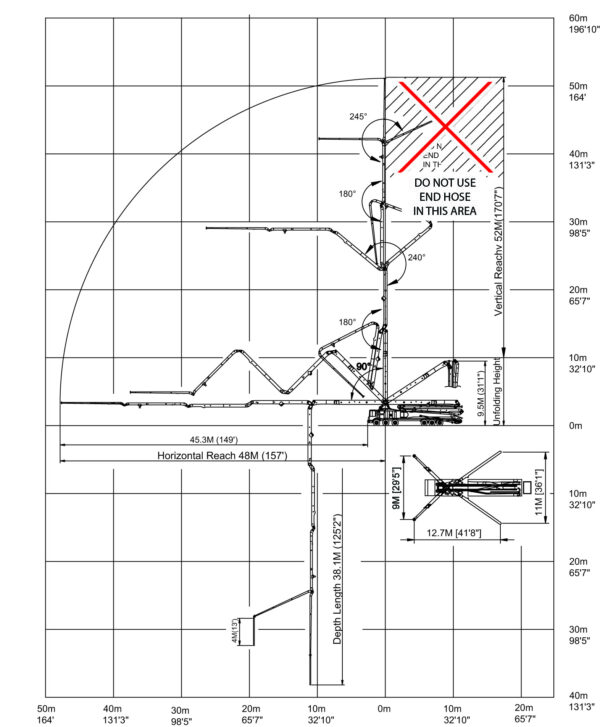

WORKING DIAGRAM

Download

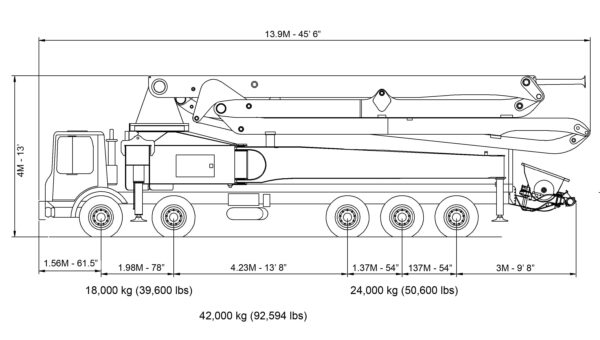

DIMENSION DIAGRAM

Download
