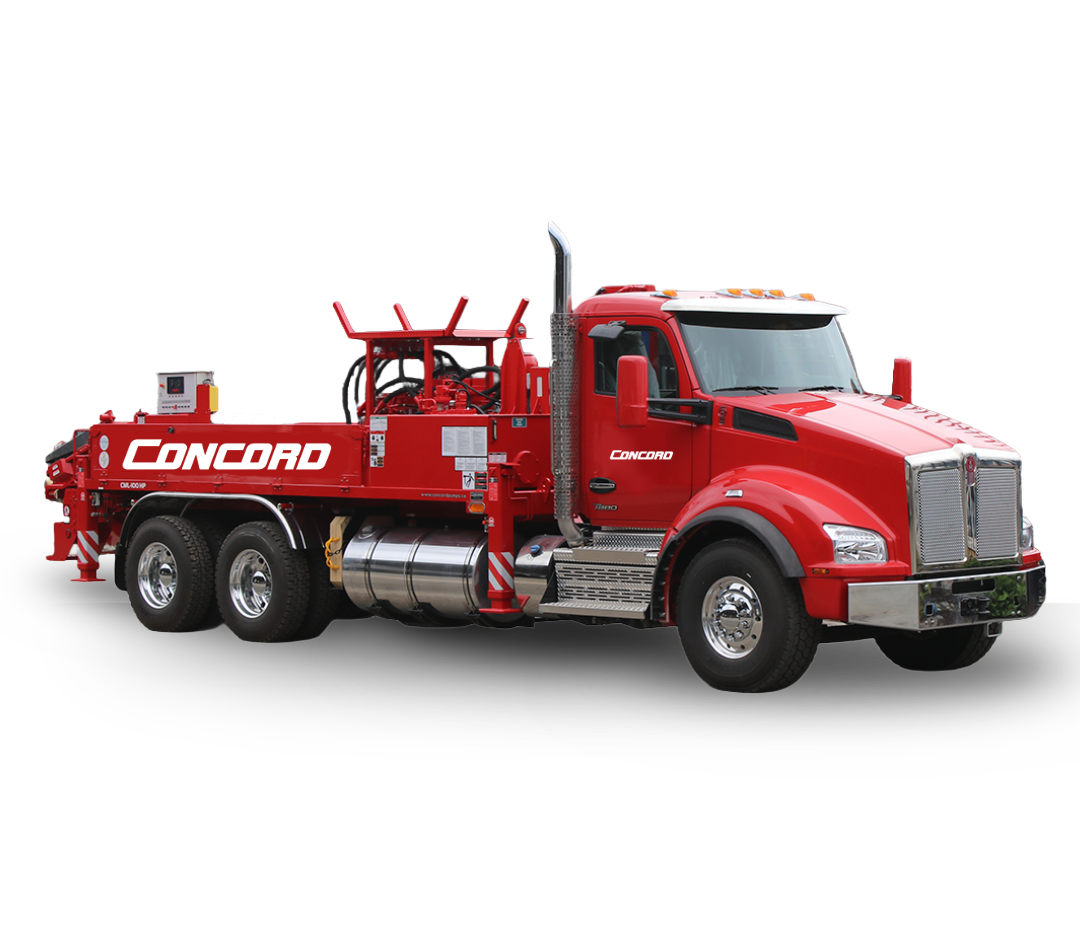

CML-100 HP TRUCK MOUNTED

Request Quote

CONCRETE PUMPS

SNAP SHOT​

The ideal solution for large commercial pours. Our compact powerhouse offers a strong combination of both mobility and function.

PIPE SYSTEM​
MAX OUTPUT​

90 (m³/hour)

BOOM LENGTH​
DELIVERY LINE​
BOOM SECTIONS​

INCLUDES

STANDARD FEATURES

  • Wireless proportional remote control
  • Magnetic working light
  • Blow-out system cap (water & air)
  • Hopper vibrator
  • Automatic greasing system (hopper only) – Lincoln®
  • Tool box with basic repair items and testing gauge
  • Company name & phone number decals
  • Quick couplings for filter system
  • Spare hydraulic hose kit

  • Spare sensing valves
  • Spare pumping relays and fuses
  • One clamps (125mm)
  • Outrigger pads (2 pieces)
  • Grundfos type water pump
  • One water hose plus nozzle
  • Two clean out sponges
  • Clean-up scraper
  • Two user/parts manual books

THE FOLLOWING ARE SPECIFICATIONS FOR PUMP, BOOM AND OUTRIGGER.

SPECIFICATIONS

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 118 yd³/hr
  • 90 m³/hr

DELIVERY CYLINDER

  • 8″ x 83″
  • 200 mm x 2100 mm

STROKES PER MINUTE

  • 22

CONCRETE PRESSURE (ROD SIDE)

  • 2219 PSI
  • 153 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 3248 PSI
  • 224 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

S-TUBE

  • 8″ x 6″
  • 200 mm x 152.4 mm

HYDRAULIC PUMP

  • Rexroth A11VLO190

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides. Automatic high and low pressure use.

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

VERTICAL MAX (HEAD SIDE)

  • 1476′
  • 450 m

HORIZONTAL MAX (HEAD SIDE)

  • 3490′
  • 1064 m

BOOM SPECIFICATIONS

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • Yes

FRONT SPREAD

  • 7′ 10″
  • 2.4 m

REAR SPREAD

  • 7′ 10″
  • 2.4 m

THE FOLLOWING DIAGRAMS ARE AVAILABLE FOR VIEWING

DIAGRAMS

WORKING DIAGRAM

Download

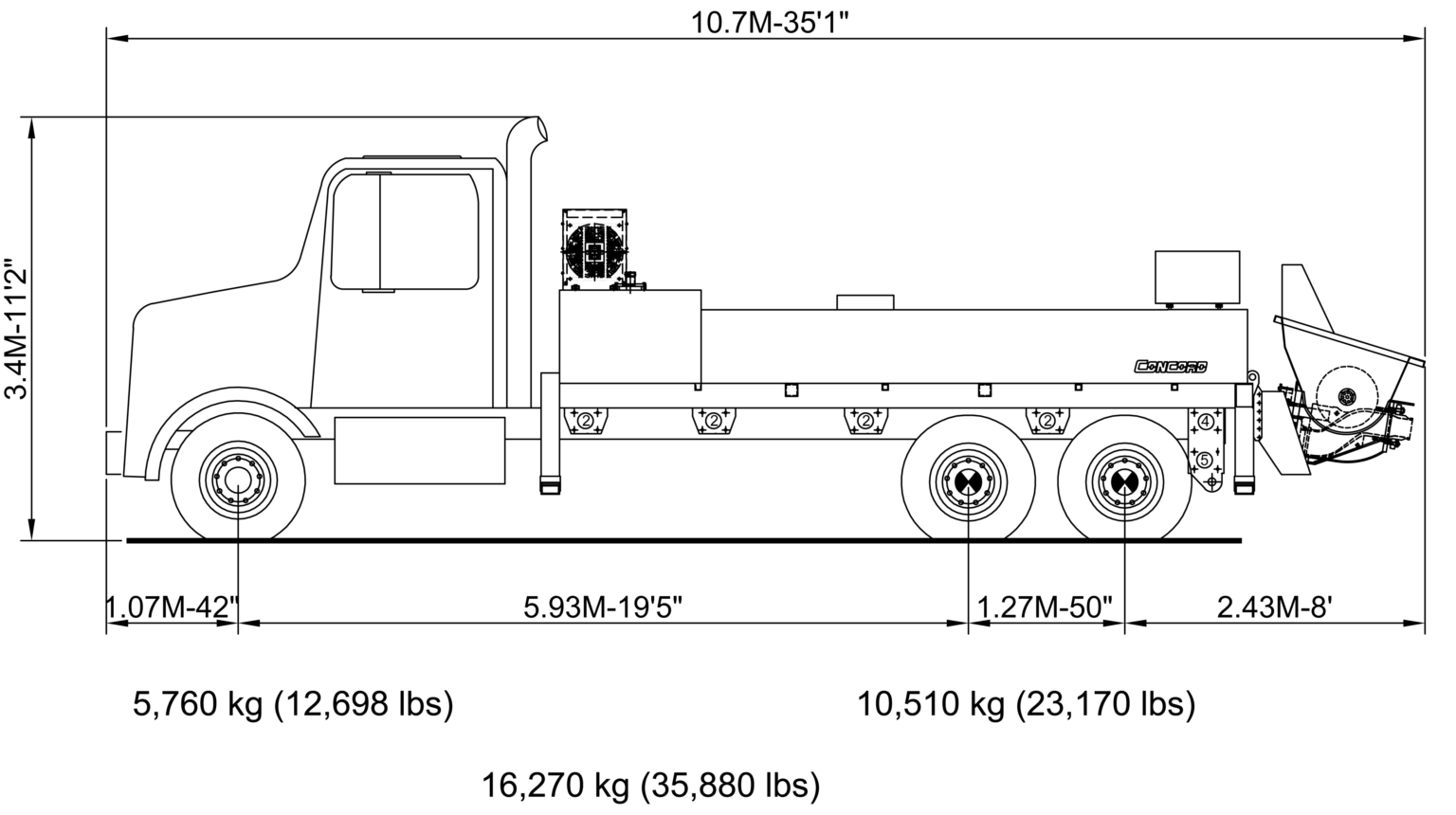

DIMENSION DIAGRAM

Download
