56-METER Z-R FOLD

Request Quote

CONCRETE PUMPS

SNAP SHOT​

Most compact 56 meter pump in the market with the convenience of X-style outriggers; 5 sections Z-R fold boom, 5 inch line, 180 cubicmeters per hour.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

180 (m³/hour)

BOOM LENGTH​

56 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

INCLUDES

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Aluminum Outrigger pads (4)
  • 4 Meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling

  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 Clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 Clean out sponges
  • Clean up scraper
  • 25Ft water hose with nozzle
  • 2 User/parts manuals

THE FOLLOWING ARE SPECIFICATIONS FOR PUMP, BOOM AND OUTRIGGER.

SPECIFICATIONS

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 237 yd³/hr
  • 180 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1269 Psi
  • 87.5 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1885 Psi
  • 130 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A20VLO190 Double Main Pump

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM (VERTICAL REACH)

  • 182′ 7″
  • 55.7 m

MAXIMUM HORIZONTAL REACH

  • 170′ 6″
  • 52 m

REACH FROM FRONT OF TRUCK

  • 160′ 7″
  • 49 m

UNFOLDING HEIGHT

  • 31′ 8″‘
  • 9.7 m

ROTATION

  • 367 degrees

SECTION ARTICULATION

  • 92/180/240/180/225 (917 Total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 34′ 8″
  • 10.6 m

2ND SECTION

  • 27′ 6″
  • 8.4 m

3RD SECTION

  • 32′ 8″
  • 10 m

4TH SECTION

  • 37′
  • 11.3 m

5TH SECTION

  • 36′
  • 11 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • Yes

FRONT SPREAD

  • 31′
  • 9.4 m

REAR SPREAD

  • 41′
  • 12.5 m

MAXIMUM OUTRIGGER WEIGHT

  • 40,000 kg
  • 88,186 lbs

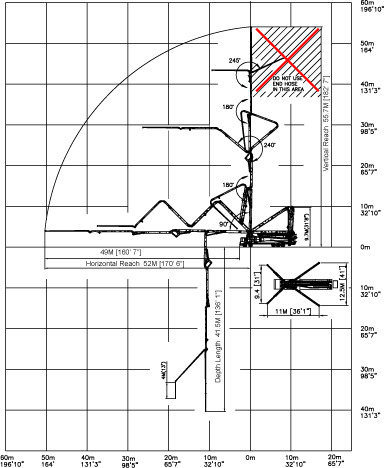

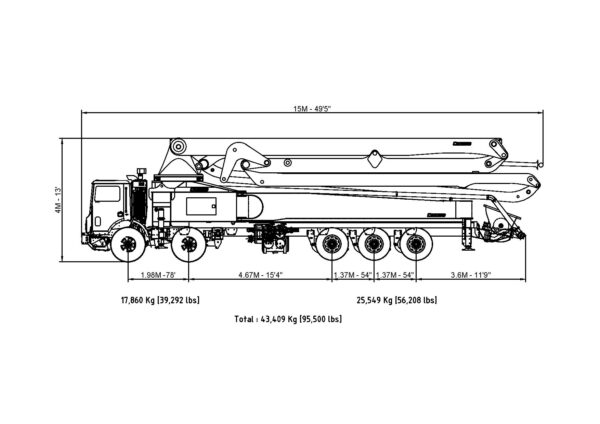

THE FOLLOWING DIAGRAMS ARE AVAILABLE FOR VIEWING

DIAGRAMS

WORKING DIAGRAM

Download

DIMENSION DIAGRAM

Download
