47-METER Z-R FOLD

Request Quote

CONCRETE PUMPS

SNAP SHOT​

Great for maneuvering in and out of tight job sites with the convenience of X-Style outriggers. 5 section Z-R fold.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

180 (m³/hour)

BOOM LENGTH​

47 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

5 (sections)

INCLUDES

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Aluminum Outrigger pads (4)
  • 4 Meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling

  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 Clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 Clean out sponges
  • Clean up scraper
  • 25Ft water hose with nozzle
  • 2 User/parts manuals

THE FOLLOWING ARE SPECIFICATIONS FOR PUMP, BOOM AND OUTRIGGER.

SPECIFICATIONS

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 237 yd³/hr
  • 180 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1269 PSI
  • 87.5 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1885 PSI
  • 130 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A20VLO190

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM(VERTICAL REACH)

  • 153′ 2″
  • 46.7 m

MAXIMUM HORIZONTAL REACH

  • 140’ 7”
  • 42.8 m

REACH FROM FRONT OF TRUCK

  • 131’ 2”
  • 40 m

UNFOLDING HEIGHT

  • 28′
  • 8.6 m

ROTATION

  • 367 degrees

SECTION ARTICULATION

  • 92/180/225/180/245 (923 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 31′ 2″
  • 9.5 m

2ND SECTION

  • 25′ 7″
  • 7.8 m

3RD SECTION

  • 26′ 11″
  • 8.2 m

4TH SECTION

  • 27′ 11″
  • 8.5 m

5TH SECTION

  • 27′ 11″
  • 8.5 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • Yes

FRONT SPREAD

  • 28′ 4″
  • 8.6 m

REAR SPREAD

  • 32’″
  • 9.9 m

MAXIMUM OUTRIGGER WEIGHT

  • 28,000 kg
  • 61,810 lbs

THE FOLLOWING DIAGRAMS ARE AVAILABLE FOR VIEWING

DIAGRAMS

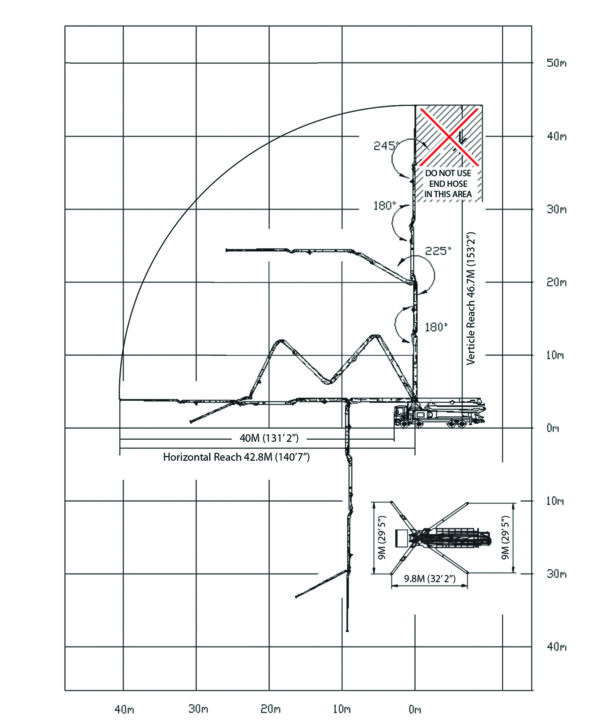

WORKING DIAGRAM

Download

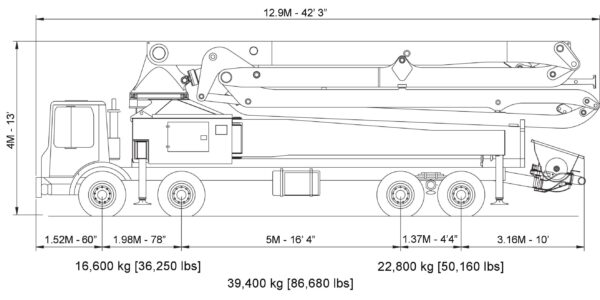

DIMENSION DIAGRAM

Download
