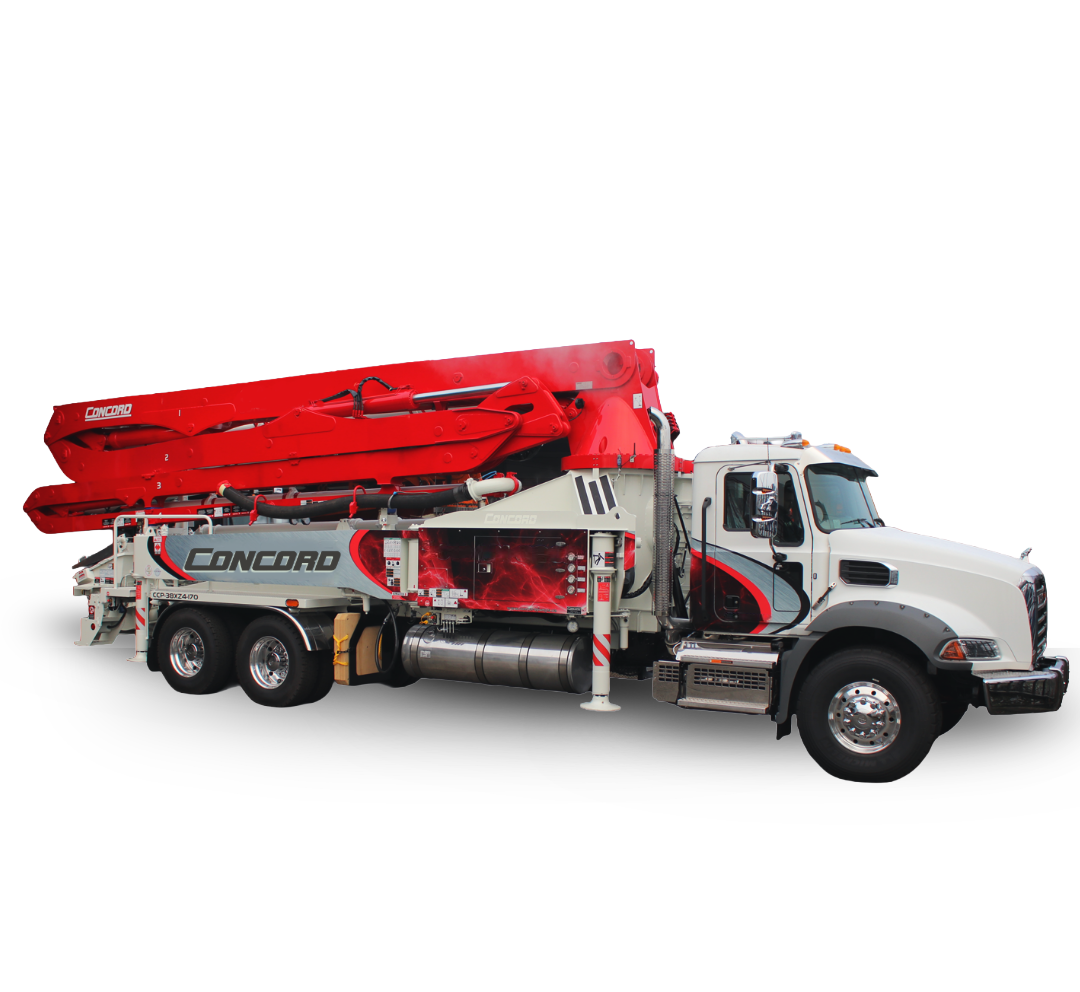

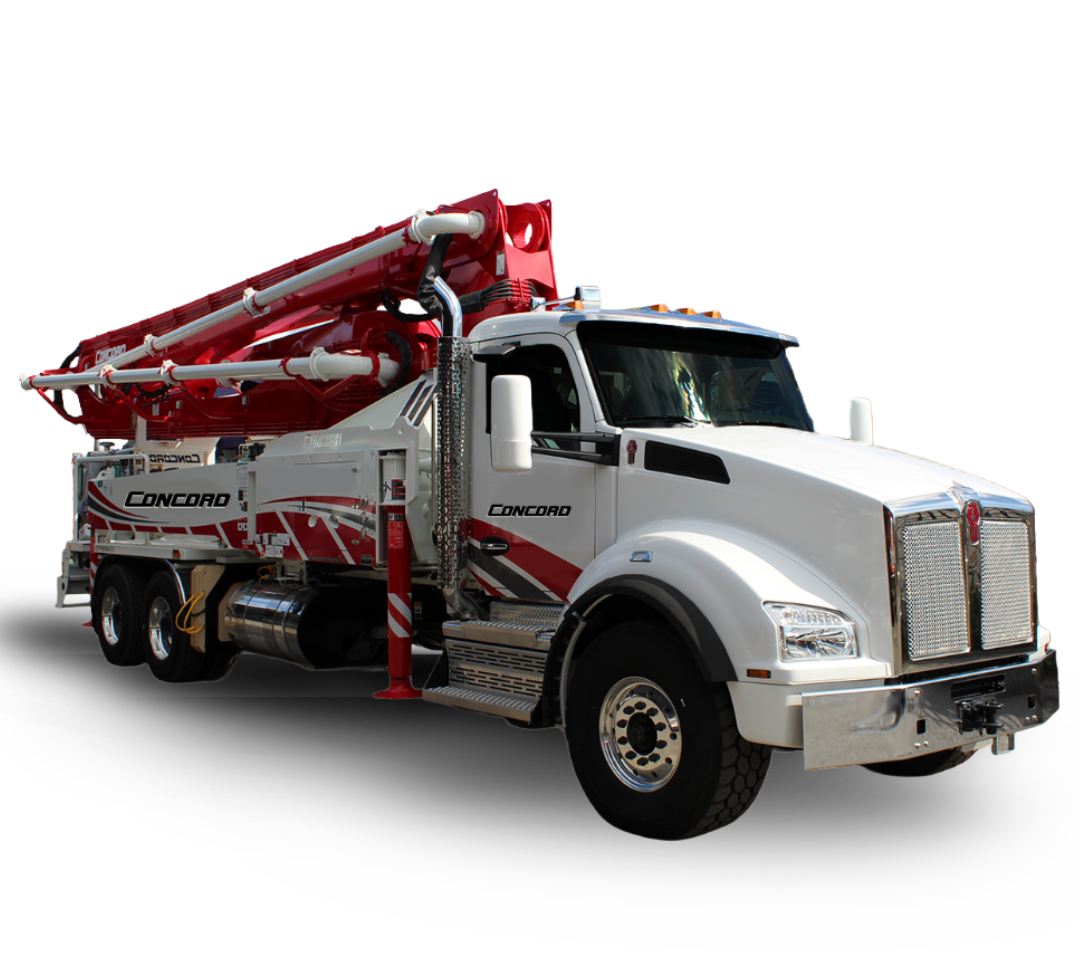

38-METER ROLL FOLD​

Request Quote

CONCRETE PUMPS

SNAP SHOT​

Perfect for commercial or residential jobs. 3rd section can articulate up to 240 degrees.

PIPE SYSTEM​

Single Wall System

MAX OUTPUT​

170 (m³/hour)

BOOM LENGTH​

38 (meters)

DELIVERY LINE​

5" (Diameter)

BOOM SECTIONS​

4 (sections)

INCLUDES

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Outrigger pads (4)
  • 4 Meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling

  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 Clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 Clean out sponges
  • Clean up scraper
  • 25Ft water hose with nozzle
  • 2 U
  •  User/parts manuals

THE FOLLOWING ARE SPECIFICATIONS FOR PUMP, BOOM AND OUTRIGGER.

SPECIFICATIONS

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 224 yd³/hr
  • 170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 PSI
  • 72 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1653 PSI
  • 114 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO260

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2 1/2″
  • 65 mm

BOOM SPECIFICATIONS

4 SECTION ROLL & FOLD BOOM (VERTICAL REACH)

  • 124′ 7″
  • 38 m

MAXIMUM HORIZONTAL REACH

  • 112′ 3″
  • 34.2 m

REACH FROM FRONT OF TRUCK

  • 104′ 3″
  • 31.8 m

UNFOLDING HEIGHT

  • 29′ 2″
  • 8.9 m

ROTATION

  • 367 degrees

SECTION ARTICULATION

  • 92/187/240/245 (767 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 30′ 2″
  • 9.2 m

2ND SECTION

  • 27′ 3″
  • 8.3 m

3RD SECTION

  • 26′ 9″
  • 8.2 m

4TH SECTION

  • 27′ 8″
  • 8.4 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • Yes

FRONT SPREAD

  • 20′ 8″
  • 6.3 m

REAR SPREAD

  • 24′6″
  • 7.5 m

MAXIMUM OUTRIGGER WEIGHT

  • 21,800 kg
  • 48,060 Lbs

THE FOLLOWING DIAGRAMS ARE AVAILABLE FOR VIEWING

DIAGRAMS

WORKING DIAGRAM

Download

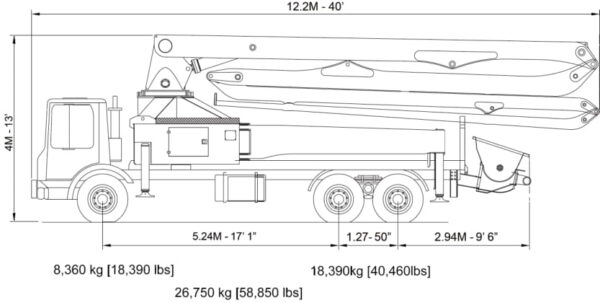

DIMENSION DIAGRAM

Download
